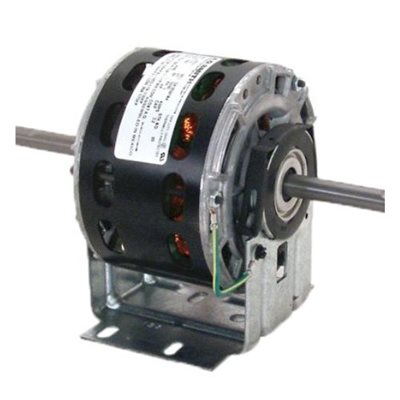

# 381 - 1/10 HP, 208-230 Volt
Press and move to zoom.
Mouse over image to zoom.
Click to enlarge
Century

# 381 - 1/10 HP, 208-230 Volt

Product Code: 381

$213.71
  • Horsepower : 1/10
  • Voltage : 208-230
  • Amps : 0.81
  • RPM : 1075
  • Frequency : 60 Hz
  • Length : 3-1/2"
  • "C" Dim. : 24-7/8"
  • Enclosure : Open
  • Shaft Dim. : 10-11/16” x 1/2" x 10-11/16”
  • Type : Permanent Split Capacitor
  • Speeds : 3
  • Diameter : 5.0"
  • Frame : 42
  • Bearings : Sleeve
  • Rotation : CWLE
  • Protector : Automatic
  • Service Factor : 1.00
  • Phase : 1
  • Ambient Temp. : 40°C
  • Capacitor Rating : 5MFD-370VAC
  • Feature(s) : Class 'A' Insulation, Double Shaft, Resilient Base
  • Weight (lbs.) : 10
  • Availability: In Stock
