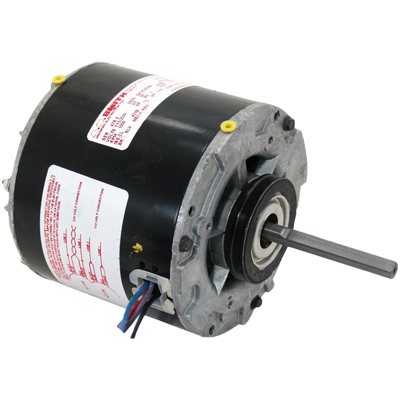

# 606 - 1/15 HP, 115/230 Volt

Product Code: 606

$91.50

Horsepower : 1/15
Voltage : 115/230
Amps : 3.80 / 1.90
RPM : 1050
Frequency : 60 Hz
Length : 4-1/2"
Enclosure : Open Air Over
Shaft Dim. : 3/8" x 3-1/4"
Type : Shaded Pole
Speeds : 1
Diameter : 5.0"
Frame : 42
Bearings : Sleeve
Rotation : CWSE
Protector : Thermally Protected
Service Factor : 1.00
Phase : 1
Ambient Temp. : 40°C
Feature(s) : Class 'A' Insulation, When using U.E. base, add (2) 1221A adapter rings to each mounting ring
Weight (lbs.) : 8
