Universal Electric Motors

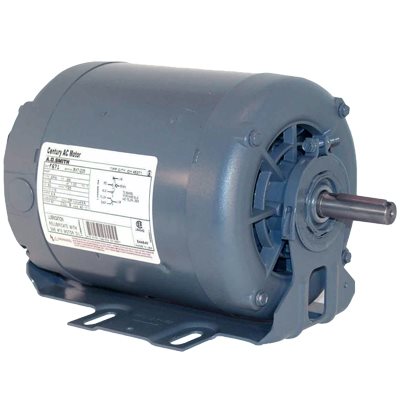

# H531 - 1.5 HP, 200-230/460 Volt
Product Code: H531
- Horsepower : 1-1/2
- Voltage : 200-230/460
- Amps : 4.5-4.2/2.1
- RPM : 3450
- Frequency : 60 Hz
- Length : 9.10"
- "C" Dim. : 11.10"
- Enclosure : Open Drip-Proof
- Shaft Dim. : 5/8" x 1-7/8"
- Type : Three Phase
- Speeds : 1
- Diameter : 6-1/2"
- Frame : 56
- Bearings : Ball
- Rotation : Reversible
- Protector : None
- Service Factor : 1.30
- Phase : 3
- Ambient Temp. : 40°C
- Feature(s) : Class 'B' Insulation, Resilient Base, Keyed Shaft
- Weight (lbs.) : 29
